Endovascular aneurysm repair

Also called EVAR

DraftNot yet reviewed by the clinical team · Last edited 14 October 2026

EVAR repairs a bulge in the body’s main artery from the inside, through small openings at both groins. A fabric tube on a thin metal frame takes the pressure off the weak wall, with no cut in the belly.

About 2 to 3 hours
for the procedure, sometimes longer
Both groins
small openings, no cut in the belly
1 to 3 days
in hospital for most people
Scans for life
to check the graft stays sealed
Start the step-by-step guide Prepare for your visit
When to get help

12 short steps on a 3D model, about 7 minutes to read · Read it as text · When to get help

Turn the model in the guide

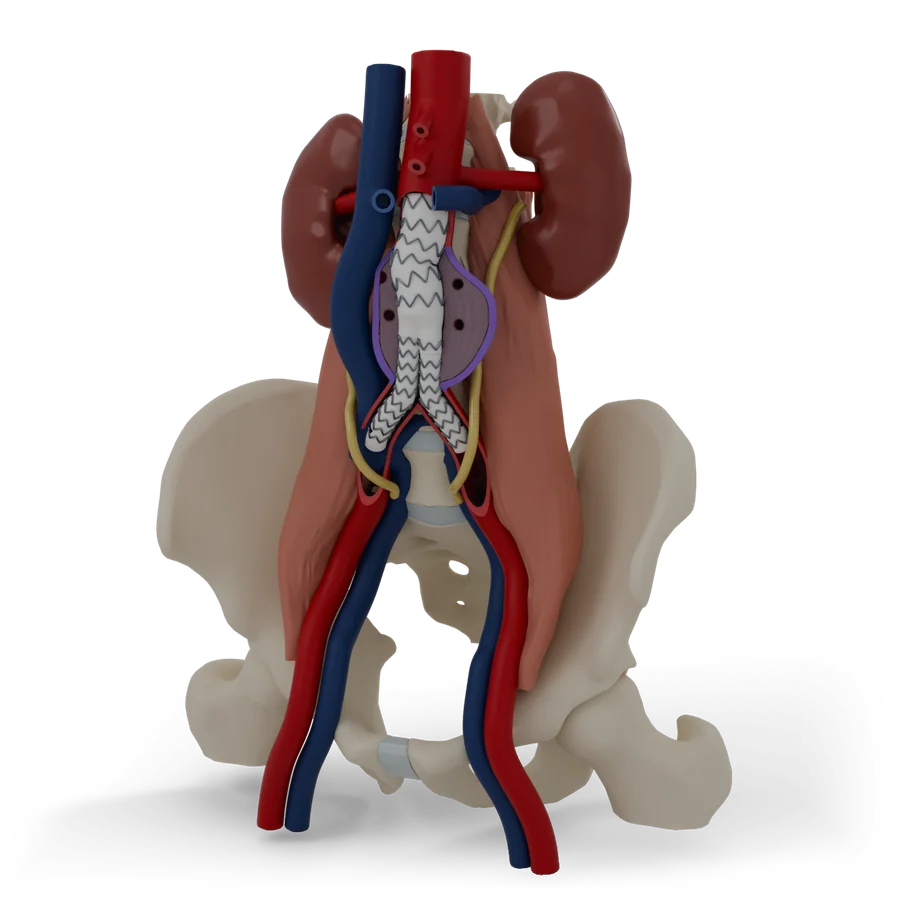

A model of the aorta, the main artery in the belly, with a stent graft in place. Purple: the bulge (aneurysm). White: the stent graft. Red: arteries. Blue: veins.

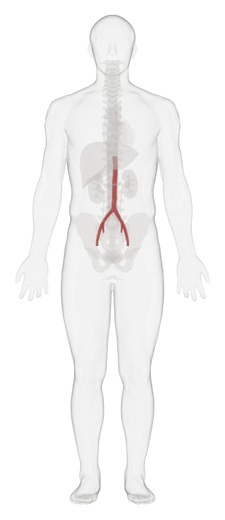

Where this happens: Belly. EVAR treats the aorta in the belly, between the kidneys and the hips. The graft goes in through the arteries at both groins.

The short version

  1. An abdominal aortic aneurysm is a weak, bulging part of the body’s main artery, and a large one can burst.

  2. In EVAR, the team reaches the aorta through both groins and slides a fabric and metal tube inside it, guided by live X-rays.

  3. The tube opens across the bulge, so blood flows through the tube and stops pushing on the weak wall.

  4. Most people go home in 1 to 3 days, but you need scans for life to check that the tube stays sealed.

Step through it on the model

Start from the beginning

Each step shows one thing on a 3D model you can turn. Jump to any step.

See all 12 steps

What it treats

How it works

The procedure

Afterwards

Risks

Your visit

What to do before, what happens on the day, and what recovery is usually like. Your care team will give you instructions for your own situation. Follow theirs if they differ.

Before your procedure

Things to do. Tick them off as you go; your ticks stay on this device only.

On the day

  1. Arriving. You may come in on the day, or the day before. You change into a gown, and a small IV line (a thin tube) is put in a vein in your arm.

  2. Consent. The team explains the procedure again and asks you to sign a consent form. You can still ask questions, or decide not to go ahead.

  3. Anesthetic. You will be asleep (general anesthetic), or numbed from the waist down or at the groins, with medicine to help you relax.

  4. The room. An X-ray room or operating room with large screens. An interventional radiologist and a vascular surgeon often work together.

  5. How long. About 2 to 3 hours, sometimes longer.

  6. Waking up. You wake up in a recovery area. You may have a thin tube draining your bladder until the next day.

Recovery

  1. The first hours

    Nurses check your blood pressure, pulse and groins often. You may need to keep your legs straight for a few hours. You can usually eat and drink soon after.

  2. Days 1 to 3

    Most people walk the same evening or the next day, and go home in 1 to 3 days. The groins are sore and bruised. A short spell of fever and tiredness can happen.

  3. Weeks 1 to 2

    Groin soreness and tiredness ease. Many daily activities can start again. Walk a little more each day.

  4. Weeks 2 to 6

    Full recovery can take up to 4 to 6 weeks. Avoid heavy lifting until your team says it is okay (advice ranges from 2 to 6 weeks). Drive only when you can do an emergency stop without pain and are off pain medicine.

  5. Around 6 weeks

    In some hospitals, the first check-up and scan are around this time.

  6. For life

    Regular scans, at least once a year, to check the graft. Take aspirin and a cholesterol medicine if they are prescribed. Tell your dentist and other doctors that you have a graft in your aorta.

When to get help

Call 9-1-1 now if you have

  • Sudden, severe pain in your belly, back or groin
  • Fainting, collapsing, or feeling very dizzy
  • Chest pain
  • Bad trouble breathing
  • A lump at the groin that is quickly getting bigger
Call 9-1-1

Call the interventional radiology (IR) team today if you have

  • A groin wound that is red, hot, swollen, oozing, or more painful each day
  • Bright red blood soaking through the dressing
  • A fever over 37.8°C
  • Pain that does not get better with your pain medicine
  • A cold foot, or a toe that turns blue or black
  • Swelling, pain or redness in a leg (this can be a blood clot)
  • New back or belly pain that is not severe

Phone number added by the hospital before launch

If you can’t reach them, go to the nearest emergency department.

Not sure? Call HealthLink BC at 8-1-1

  • You are not sure if something is normal
  • Questions about wound care, medicines or activity when your team is closed
  • Non-urgent advice from a nurse, any time of day

A nurse can give health advice any time, day or night.

Call 8-1-1

Deaf or hard of hearing: call 7-1-1. Translation services are available in over 130 languages.

Benefits and risks

What it can do for you

  • No cut in the belly. The graft goes in through two small openings, one at each groin.
  • Less risk of dying around the time of the repair than with open surgery: fewer than 2 in 100 people, compared with about 4 in 100, when four large trials were combined.
  • A shorter hospital stay: most people go home in 1 to 3 days. In one large trial, the middle stay was 3 days, compared with 7 days after open surgery.
  • Less blood loss and a shorter procedure than open surgery.
  • A faster recovery: many daily activities can start again after 1 to 2 weeks.
  • It works: the bulge is kept from bursting in more than 99 in 100 people, according to one specialist society.
  • To be fair: after a few years, people live about as long after EVAR as after open surgery, and more people need a second procedure after EVAR.

What can go wrong

Every procedure has some risk, and most people do not have a serious problem. Each risk is listed with how often it happens. They are grouped on one scale, from very common to very rare.

Very commonmore than 1 in 10 people

  • A leak from a small side artery (type II endoleak)

    It is seen in about 10 to 20 in 100 people at the 1-month scan. About 5 to 15 in 100 still have one after 6 months. Between 30 and 75 in 100 of these leaks seal on their own.

    Small arteries that used to feed the bulge can let blood seep back into it, around the outside of the graft. Many seal on their own, so the team watches them on your scans. They are treated if the bulge grows.

  • Needing another procedure later

    About 15 in 100 people within 4 years.

    Where this number comes from

    About 15 in 100 people within 4 years, says one patient leaflet. Other sources say about 1 in 10.

    Because leaks or movement can happen months or years later, some people need a second, usually smaller, procedure.

  • A flu-like spell

    About 3 in 10 people.

    Where this number comes from

    About 3 in 10 people, in combined studies of stent grafts in the chest and belly.

    In the first days, some people have a fever, aches and tiredness as the body reacts to the graft. It is usually not serious, but it can mean a longer stay in hospital.

Common1 in 10 to 1 in 100 people

  • Bleeding, bruising or infection at the groin

    About 5 in 100 people had a problem at the groin opening.

    Where this number comes from

    About 5 in 100 people had a problem at the groin opening, in a large registry of about 34,000 people.

    Bruising and soreness at the groin are common for a week or two. Sometimes a larger lump of blood under the skin (a haematoma), a clot, or a wound infection happens. In severe cases, another small operation is needed. Problems at the groin are more common in women (about 8 in 100) than in men (about 4 in 100).

  • A leak at a seal, or the graft moving (type I endoleak)

    About 8 in 100 people had a leak at the top seal, in one study of 389 people followed for about 7 years. On average it showed up about 4 years after the repair.

    If the top or bottom of the graft does not seal tightly, or it slips over time, blood can get into the bulge at full pressure. This is more serious and needs to be fixed quickly, often with another catheter procedure. It is more likely when the healthy part of the aorta below the kidney arteries is wide or bent.

  • Strain on the kidneys

    About 3 to 9 in 100 people, in two studies of standard EVAR. Fewer than 1 in 100 needed dialysis (a machine that cleans the blood), in one recent registry.

    The X-ray dye can strain the kidneys, especially if they are already weak. It often gets better, but for some people the kidneys stay weaker afterwards. Your blood tests beforehand help the team plan for this.

  • A blocked graft leg

    About 6 in 100 people, when 13 studies were combined. About half happen in the first month.

    A clot can block one leg of the graft, so less blood reaches that leg. Most people need another procedure or an operation to fix it. More recent studies found it less often.

  • The bulge bursting after repair

    6 of 444 people (about 1 in 75) had a burst within up to 9 years of EVAR.

    Where this number comes from

    6 of 444 people (about 1 in 75) had a burst within up to 9 years of EVAR, in one large trial.

    Sometimes the bulge can still burst years later, usually because a leak or a moving graft was not found in time. This is why scans for life matter.

  • Serious problems and risk to life

    About 1 to 2 in 100 people die around the time of EVAR, says HealthLink BC. One recent patient leaflet says fewer than 1 in 200. Graft infection happens to fewer than 1 in 100.

    Rarely, a heart attack, stroke, chest infection, graft infection, or a problem with blood supply to the bowel, legs or spinal cord can happen. Any major procedure carries a small risk of death.

Other options

Other options (5)
Open surgery
A cut in the belly to replace the bulging part with a fabric tube. A bigger operation with a longer stay, but fewer repeat procedures and less need for lifelong scans.
Watching with scans
For smaller bulges, regular ultrasound scans are usually the choice. Small aneurysms rarely burst, and fixing a small one does not help people live longer.
A custom stent graft
If the bulge reaches close to the kidney arteries, a graft with openings or branches for those arteries may be an option.
Lifestyle and medicines
No medicine can strengthen the aorta, but stopping smoking and controlling blood pressure and cholesterol lower your risks.
No repair
Some people choose not to have repair, often because of other health problems. In one trial of people not fit for open surgery, EVAR did not help them live longer overall.

Questions to ask

Tick the ones you want to ask. Your ticks stay on this device only.

Check your understanding

Check your understanding (5)

Nothing is saved. It is just for you.

  1. What does EVAR do to the bulge?
  2. Where does the graft go in?
  3. Why do you need scans for the rest of your life?
  4. What should you do for sudden, severe pain in your belly or back?
  5. Can bending or exercise damage the graft?

Words used

Words used (12)
Aorta
The body’s main artery. It carries blood from the heart down through the chest and belly.
Aneurysm
A weak part of an artery wall that bulges out like a balloon.
EVAR
Endovascular aneurysm repair. Fixing an aneurysm from inside the blood vessel.
Stent graft
A fabric tube held open by a thin metal frame. It lines the artery from the inside.
Endoleak
Blood leaking into the bulge around the outside of the stent graft.
Interventional radiologist
A doctor who treats problems through tiny openings, guided by imaging such as X-rays.
Vascular surgeon
A surgeon who treats problems of the arteries and veins.
Sheath
A short, thin tube placed in the artery at the groin. Wires and the graft pass through it.
Guidewire
A very thin, bendy wire that the team steers through the arteries to lead the way.
Contrast dye
A liquid that shows up on X-rays, so the team can see the blood vessels.
CT scan
A detailed X-ray scan that shows the inside of the body in thin slices.
Iliac arteries
The two arteries the aorta splits into, one going toward each leg.
